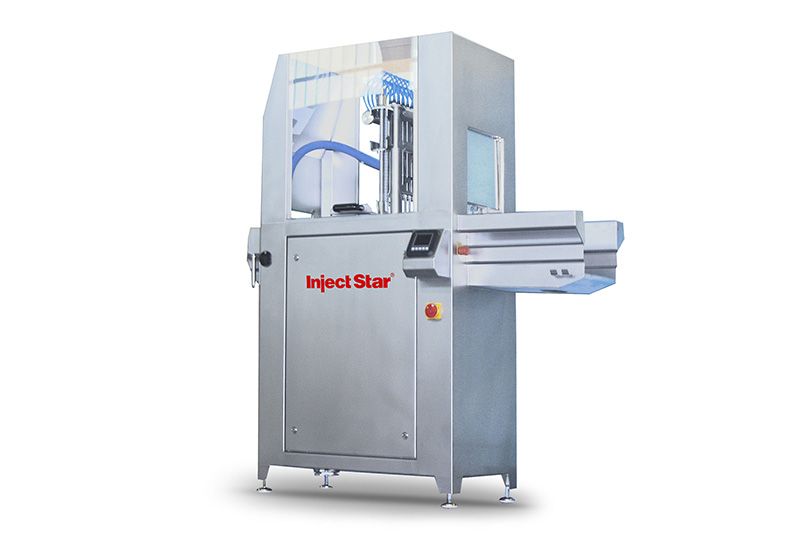

The injector is designed for small and medium-sized enterprises and features a modular design and numerous additional options for optimal injection of bone and lean red meat and poultry. Advantages: – hygienic design – disassembly in a few steps and easy cleaning – clear separation of the drive module from the working area – multifunctionality – mobility and compactness – compliance with the highest safety standards – robustness and durability
Features: – capacity up to max. 4000 kg/h – synthetic conveyor belt 400 mm – New-Twist-System with max. 200 needles (depending on model) – touch screen computer control – with crank or linear drive (depending on model) – modular design – product-specific equipment – hygienic design – compliance with the highest safety standards
Components (optional): – various needle/knife combinations – brine filtration system (uncooled/cooled) – steak head option – poultry injection – fish and fresh meat injection – emulsion injection – charging equipment – brine preparation
Depending on the model, the injector is equipped with a crank or linear drive. The linear drive ensures absolutely homogeneous pressure and uniform distribution of brine in the product. The ability to set the upper and lower stroke points of the needles makes the injection process more time-efficient.
New-Twist spring-loaded needles: – standard 4 mm double spray needles for red meat – quick change of individual needle tips – easy cleaning
Optional equipment: – 4 mm quadruple spray needles for red meat – additional accessories for gentle poultry syringing with 3 mm double or quadruple spray needles – other needle types and diameters on request
Centrifugal pump: – completely made of stainless steel – hygienic design – steel type AISI 316/V4A
Easy-to-use control panel with touchscreen display ISC-B05: – IP 65 – storage of 99 freely programmable recipes – manual control mode and automatic program execution mode
Optional equipment data logging: recording and tracking of key production parameters – Industry 4.0 technology
Plastic conveyor belt: – material: polyethylene – minimal maintenance costs – easy cleaning
