Features and benefits
Reduces labor costs with one operator per machine.
Meets or exceeds the highest safety standards.
Easy handling of artificial, fiber and collagen casings.
Suitable for 20-120 mm caliber with a maximum sausage/chain length of 1700 mm.
Permissible weight: from 500 g to 10 kg.
Speed: up to 65 loops/minute, depending on the product.
Available for smoking racks with a length of 800-1200 mm.
Configurable to fit customers’ existing smoker racks, eliminating the need for special formats.
Motorized magazine for 30 hangers at a time.
Automatic stop system: the line automatically stops when the magazine is empty.
Designed for docking with TT1815 or TT1512 systems.
Parallel turret for double clipping ensures faster shell changes and a continuous production process.
Easy replacement of hinges and clips by opening the case on the belt.

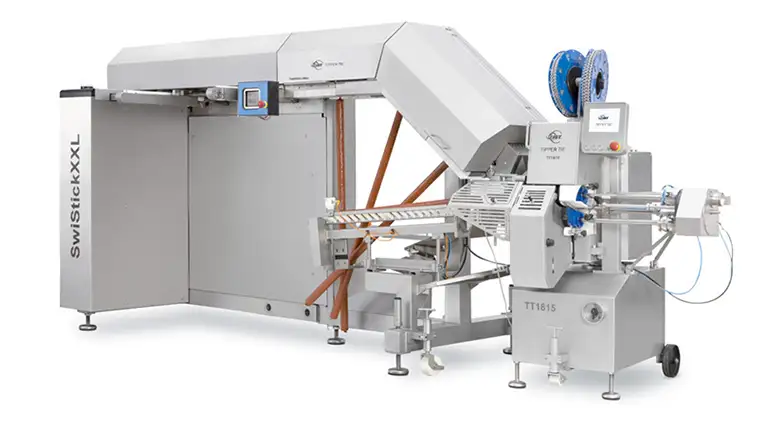

A robot or automated conveyor system can transport heavy filled hangers from the SwiStickXXL hopper to the smoker cart.
Designed for reliability and ease of maintenance.
The JBT TIPPER TIE PRoCARE system is available.
Details
Applications: dry, smoked sausage, vegan sausages, pepperoni and raw/frozen/chilled pet food.

Driven by maintenance-free servo motors.
State-of-the-art PLC control via a multilingual graphic touch screen on the dual clipboard.
Fast recovery of all settings such as the number or distance between products on the smoking racks.
The monitoring system gives a visual signal when only a few hangers remain in the store.
Upcoming maintenance work is reported via the touch screen.
The position of the individual hinges is determined by the control system, which improves the utilization of each hanger, smoking trolley and cooking or smoking chambers by up to 25%.
An efficient hanger change system ejects filled hangers into a buffer in 600 ms and automatically inserts new ones from the magazine.
The built-in safety system monitors the production process and stops the line in case of equipment failure.
The buffer safety stop is activated when the product table is full.
Smooth, angled stainless steel surfaces ensure fast, hygienic cleaning.
