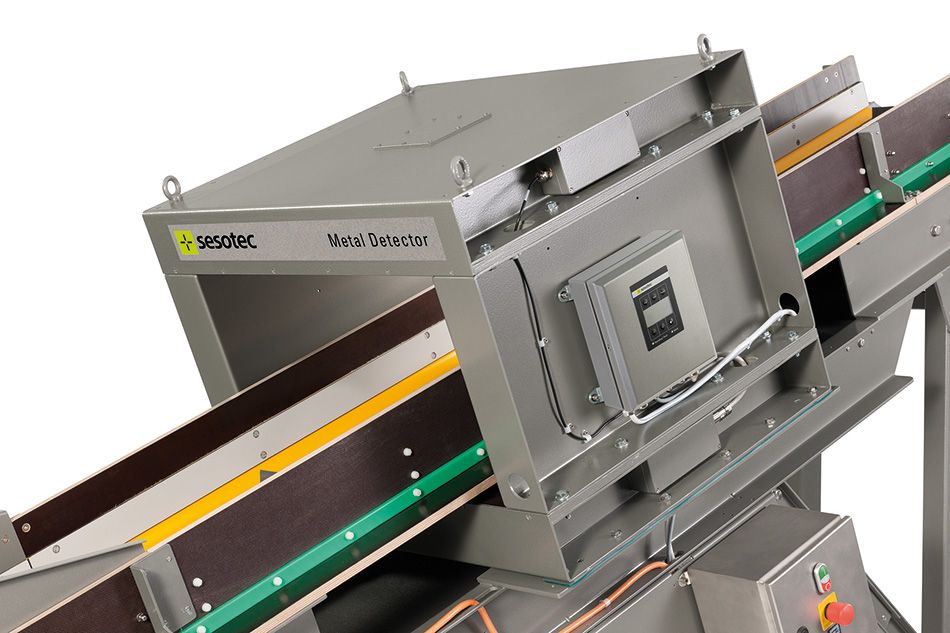

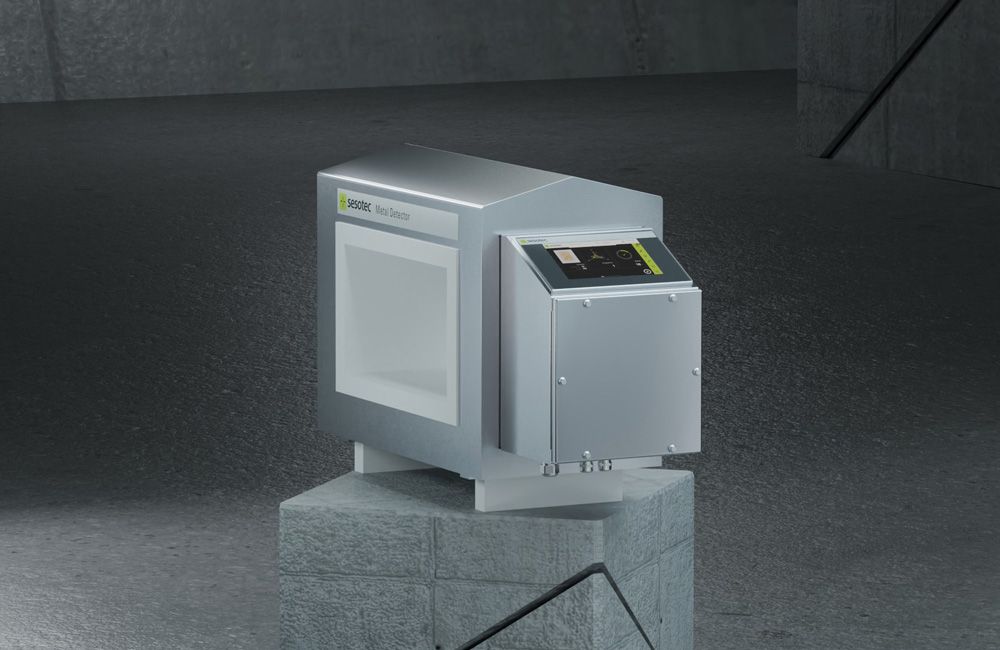

Metal detector for installation in conveyor systems – Standard model with multi-frequency technology In compliance mode, the sensor can be configured to meet factory or audit standards at the touch of a button to achieve compliance and reduce false rejections at the same time. Thus, process stability is maintained at all times. Sensitivity prediction is automatically calculated after each training process and after changing sensitivity-dependent parameters, and allows you to automatically determine the detection accuracy of various foreign bodies. The GLS MF has a 7-inch color touchscreen display with clear controls and a QR code remote control function. Soon, the device will also include OPC UA, MQTT or REST-API interfaces as standard.
Detection accuracy | 92 mm V2A, from 0 |
Frequency range | до 600 кГц |
Brand | Sesotec |
IP protection class | IP65 (optional with display cover and detector shaft for IP66/69K) |
Display size | 7“ color touch display |
Min./Max. Tunnel size (DB x DH) | 250/150 mm 1000/500 mm |
Amount of available sizes | 73 |
Ambient temperature | (-10°C to +50°C) |
Product temperature | (20°C to +80°C) |
Conveyor belt speed | 0, 0 m/s max. Possible, 02 to 5, 1 m/s best sensitivity 0, 1 to 2 |
